Halogen Converters



The halogen converters - also called imitation burners - are interchangeable with the oil burners and vice versa.

All halogen converters include:
G4 halogen lamp holder (the socket for the halogen bulb)
290 cm (114 inches) cord with switch and DIN plug.

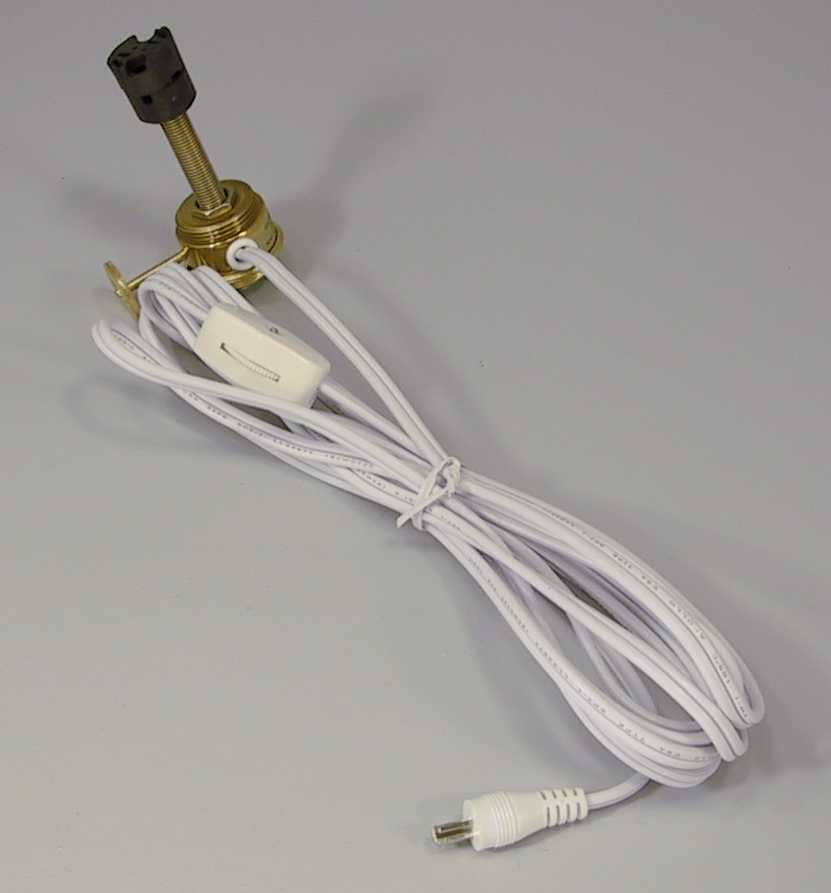

Converter 6 for Passenger, Ship's, Captain's Cabin, Pilot's,
Galley, Pigeon, Classic and Classic Yacht lamps.

G4 lamp holder (bulb socket) max. 20W

Article no.: ES 70 11 00 (lacquered brass)
Article no.: ES 70 11 11 (chromium plated brass)

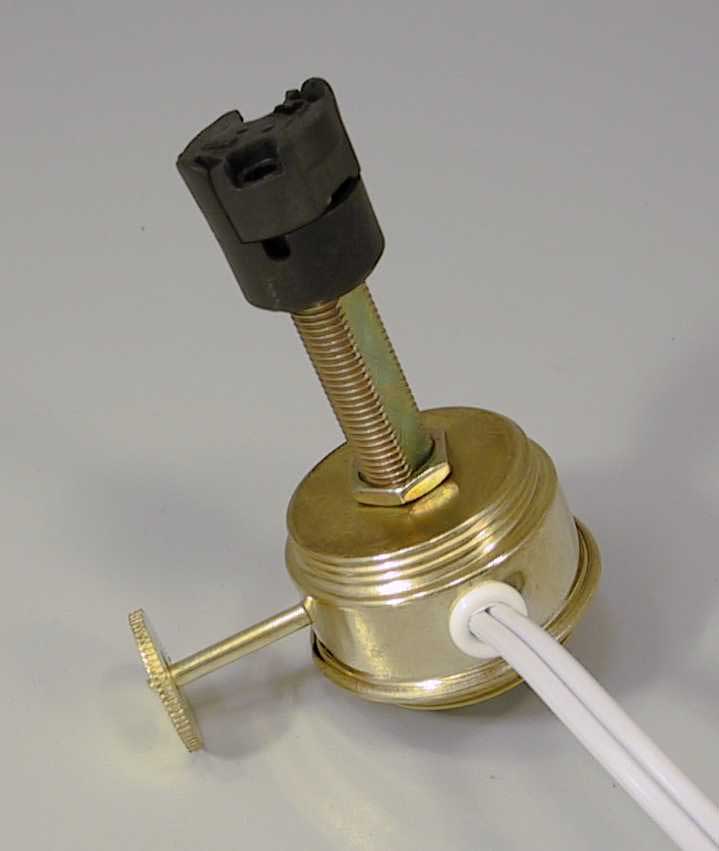

Converter 10 for Engineer's, Old Danish and Gilleleje lamps.

G4 lamp holder (bulb socket) max. 20W

Article no.: ES 70 12 00
DIN plug outlet for 2 lamps
Article no.: ES 70 10 00

If you want to connect 4 lamps to one transformer you need 3 pieces of the ES 70 10 00.
Halogen bulbs G4 socket Article no.
Halogen bulb 12V/5W ES 70 20 00
Halogen bulb 12V/10W ES 70 20 01
Halogen bulb 12V/20W ES 70 20 02
Halogen bulb 24V/20W ES 70 21 00
Halogen bulb 28V/10W* ES 70 22 00
Halogen bulb 28V/20W* ES 70 23 00
Golden light
The standard halogen bulb to be used in the G4 socket is 12V/5W.
If you instead use a 24V/20W bulb (and a 12V supply voltage) you will get a soft and golden light more similar to the light from an oil burner.

*) Extended lifetime
The lifetime of a normal 24V bulb is reduced due to the high charging voltage from the ships generator or battery charger. Therefore when using the lamps directly connected to the ships supply it is recommended to use 28V bulbs.
